Water to Water Heat Pumps - Kirloskar Chillers
Heat Pumps
Water to Water Heat Pumps
Range: 140 ~ 2400 kW
Hot Water Temperature: Up to 85 deg. C
Refrigerants: HFC 134a & HFO 1234ze
- Highly energy efficient water to water heat pumps series are available with flooded & DX evaporators depending on the applications
- High efficiencies are obtained by use of enhanced surface copper tubes
- Use of high efficiency suction gas cooled motor
The Flexibility Advantage:
- Cooling capacity ranges from 40 TR (140 kW) to 685TR (2400 kW)
- Eco-friendly refrigerants HFC 134a, HFO 1234ze
- The chillers are used for various applications like human comfort, processing cooling, Healthcare and Hospitality etc
- Various options for electrical starters - Star-Delta, Variable Speed Drives
- Heat exchanger tube options - Cu, SS, Cu-Ni.
The Reliability Advantage:
- Highly energy efficient & reliable compressor design
- Available with DX and Flooded Evaporator design
- Efficient & reliable oil recovery system prevents oil carryover into the heat exchangers
- Shell & tube condenser with enhanced surface copper tubes & removable water heads, with components specially designed for the high pressures occurring due to high temperature operation.
The Controls Advantage:
- User friendly K-Smart controller
- Backlit LCD display or graphic touchscreen displaying the unit status in simple English

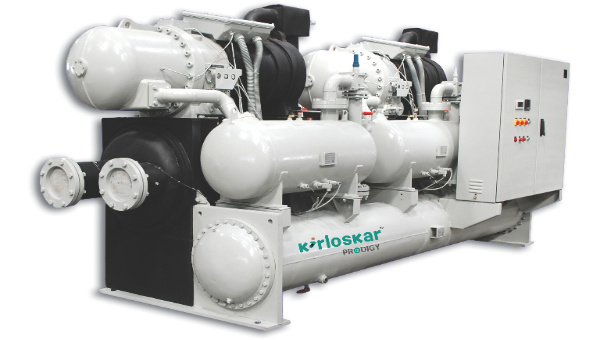

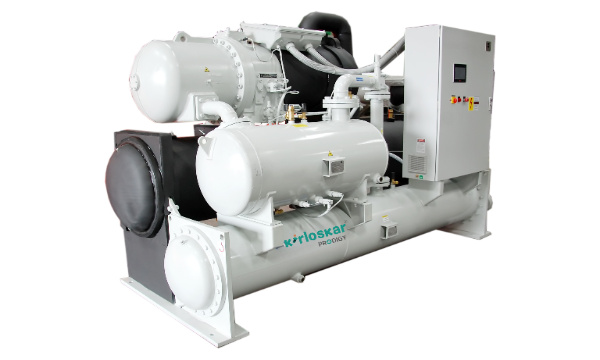

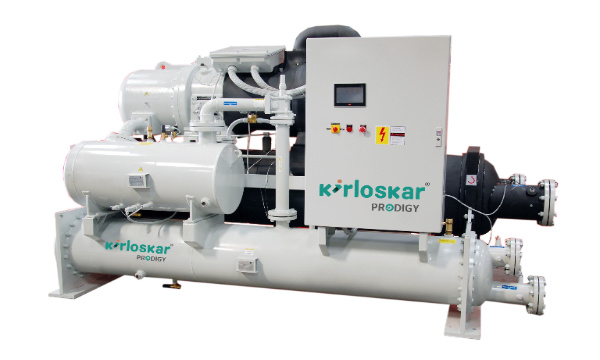

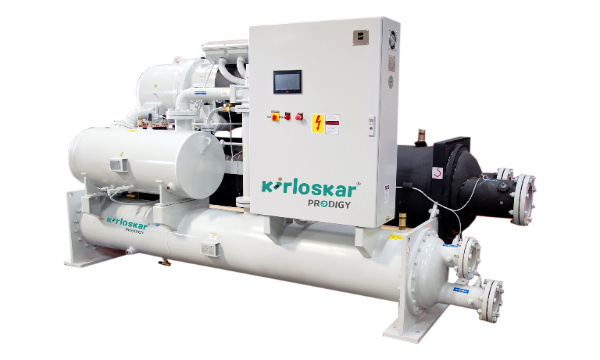

Kirloskar PRODIGY Water to Water Heat Pumps are equipped with one or two high efficiency screw compressors to generate hot water for various air conditioning, humidity control and industrial process heating applications.
Heat Pumps offer the following benefits:
- Simultaneous heating and cooling, with chilled water generation being a by-product of the hot water being produced.
- Heat Pumps are a clean alternative to fossil-fuel fired boilers.
AHRI Certification
Kirloskar Chillers Private Limited, way back in 2006, became the FIRST chiller manufacturer in India to have its range of water cooled centrifugal and screw water chillers certified by AHRI under the AHRI 550/590 & AHRI 551/591 certification programs. This authenticates Kirloskar Chillers' claim of chillers designed and manufactured to global standards. Kirloskar Chillers has a continuous commitment to supply chillers that perform as specified.
Further, in 2008, KCPL also became the first company in India to have its chiller test beds certified by AHRI.
On-going performance verification of chiller capacity and power input provides the owner with specified performance in accordance with the latest versions of AHRI Standard 550/590 & AHRI 550/591.
